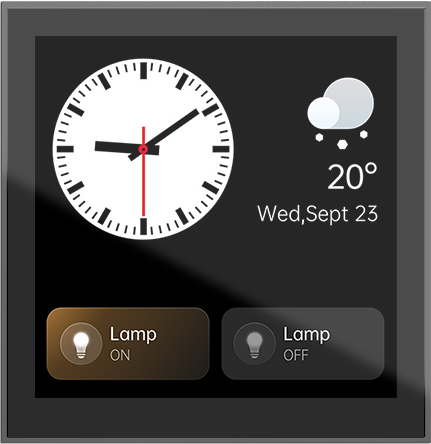

Orvibo MixPad M5 Smart Control Panel

Orvibo MixPad M5 smart control panel with 4-gang lighting control, touch dimming, a built-in Zigbee hub and Alexa built in for voice control.

Pricing on request

Trade and project rates for developers, designers, contractors and integrators. Homeowners get a quote for supply and installation.

Connectivity
Zigbee 3.0 hub
Power
220–240V, 50/60Hz
Size
86 × 86 × 38mm (3.39 × 3.39 × 1.51in)
Load
Max 400W

Features

4-gang lighting control

Controls up to four lighting circuits independently, each with touch dimming.

Alexa built in

Voice control for lights, music, weather and other smart home devices.

Zigbee hub

Connects and controls your Zigbee devices from one panel.

Touch dimming

Adjust brightness and colour temperature by touch.

Schedules

Set schedules and timers so lighting follows your routine.

Weather updates

Shows current weather and forecasts on the panel.

  • Voice control

Specifications

Product

Brand
Orvibo
Category
Hubs & control panels

Works with

  • Alexa
  • Wi-Fi
  • Zigbee
  • Bluetooth

Performance & features

Load (L1/L2)
Max 400W
Load (L3/L4)
Max 200W
Wi-Fi
2.4GHz and 5GHz dual-band
Bluetooth
Bluetooth 4.2
Zigbee
Zigbee 3.0 hub
Voice control
Alexa built in

Fitment & installation

Dimensions
86 × 86 × 38mm (3.39 × 3.39 × 1.51in)
Operating temperature
0–45°C
Material
Plastic

Power

Power supply
220–240V, 50/60Hz

Installation & support

We supply the Orvibo MixPad M5 Smart Control Panel. Our technicians can install and commission it, or we can support your electrical contractor with first-fix guidance and commissioning.

For projects, we provide device schedules, quantities per unit type and handover documents.

Site requirements

  • Standard 86mm wall back box
  • Neutral wire required
  • 220–240V AC, 50/60Hz supply
  • Wi-Fi network (2.4GHz or 5GHz)
  • Works with LED, CFL and incandescent loads

Datasheets & drawings

We send the datasheet, installation manual and fitment drawings with your quote, ready for tenders and submittals.
